Fitted Flange Type LMIF LMIK LMIH

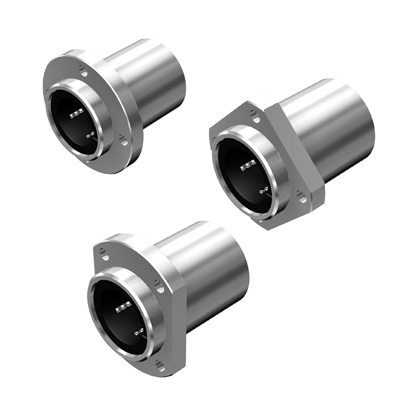

Fitted flange type consists of three different shapes: round, square, and ovular.
For fitted round flange type, since the fitted part is short, the linear bushing tends not to protrude into the other side, so space is saved on the side opposite the mounting.
Available in:
- LMIF Series (standard fitted round flange type)
- LMIF-L Series (long version of LMIF Series)
Fitted square flange type is like LMIF model, but the flange is cut to a square shape. The height is lower than the circular flange type, allowing a compact design.
Available in:
- LMIK Series (standard fitted square flange type)
- LMIK-L Series (long version of LMIK Series)
Fitted ovular flange type features a flange cut into an ovular shape. The height is lower than model LMIF, allowing a compact design. Because the rows of Linear Bushing balls are arranged such that flat loads are borne in two rows, superior lifetime is achieved.
Available in:
- LMIH Series (standard fitted ovular flange type)
- LMIH-L Series (long version of LMIH Series)
